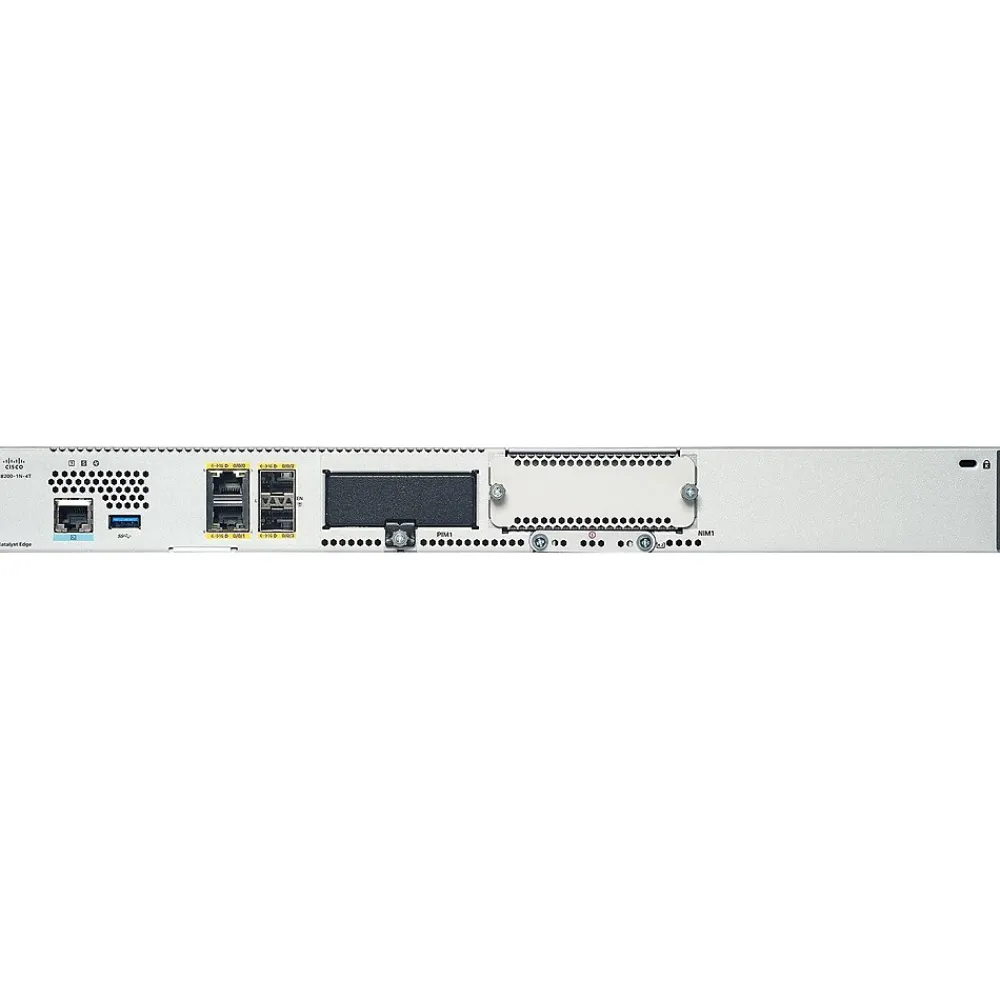

The Cisco Catalyst 8200 Series Edge Platforms with Cisco IOS XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats. Model C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco’s third-party ecosystem.
- This 1RU router enables up to 1Gbps IPsec traffic
- Uses an Intel x86 CPU and 8GB DRAM memory by default
- This model is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile memory Express (NVMe) storage
- Provides four built-in Ethernet WAN ports: two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity
- Has an integrated onboard 8GB flash memory which is not upgradable
- Platform support both integrated pluggable modules as well as external Cellular Gateways with Cat18 LTE and 5G capability for improved throughput that addresses those use cases
- An integrated PIM module or external Cellular Gateway can be chosen based on a specific branch’s cellular coverage, or work in tandem forming a high-availability Active-Active cellular WAN solution
- Protocols: IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2: RIP and RIPv2, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol, BGP Route Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol
- With branch multicloud access, you can accelerate your Software-as-a-Service (SaaS) applications with a simple template push from the SD-WAN controller
- Features such as TCP optimization, Forward Error Correction (FEC), and packet duplication enhance application performance for a better user experience
- Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software
| Attribute name | Attribute value |
|---|---|
| dimensions | |
| Width in Inches Weight of the product measured in pounds. | 10 |
| Height in Inches The overall depth of the product, measured front to back. | 11.8 |
| features | |
| Gaming Actual manufacturer name for the color of the product. | Silver |
| network | |
| Wireless Connectivity | Yes |
| performance | |
| Max. Data Transfer Rate (Mbps) | Intel x86 CPU |
| Gigabit The total number of built-in WAN (Wide Area Network) ports. | 4 |
| USB Port All Types of Connector/Port/Interface on product. | 1 x NIM slot and 4 x 1 Gigabit Ethernet WAN ports |
| # of LAN Ports Input Power is the amount of electrical power that is fed into the device. | AC: 90 to 264 VAC |
| security | |
| Security Protocols Built-in Firewall indicates if the device comes equipped with a built-in firewall for added security. | Yes |
| additional details | |
| VPN Support | Yes |
| Series or Collection The primary color of the product | Gray/Silver |
| Quality of Service Quality of Service (QoS) devices equipped with QoS capabilities allow users to priortize bandwidth for specific devices or activities. | Yes |
