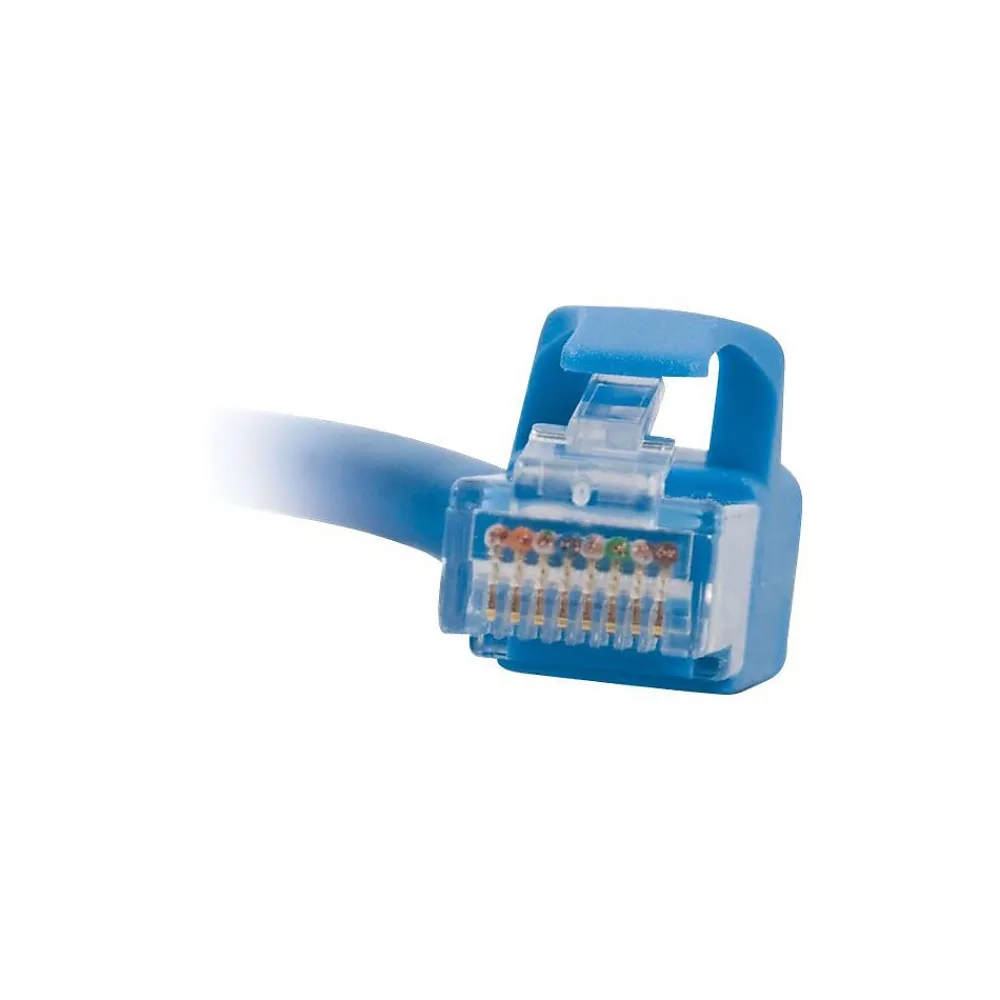

C2G Cables to Go CAT6 PATCH CABLE 10FT BLUE
$8.99
The C2G® 10′ male to male category 6 blue snagless patch cable features RJ-45 male connectors on both the ends for connectivity. This cable with PVC jacket, truncates both impedance and structural return loss. High conductivity copper cable minimizes near-end crosstalk levels. Applications requiring bandwidth-intensive voice, data or video distribution need fast Ethernet computer networks. Bonded paired cable maintains the twist-spacing throughout the line up to the termination point. This cable is compatible with hub, switch, router, network adapter, modem DSL/cable, patch panel and other twisted pair applications.
- Ethernet network patch cable is suitable for high performance networking applications
- Cable length: 10′
- Connections: 1 x RJ-45 male to 1 x RJ-45 male
- Conductor: 4 twisted pair 24 AWG stranded bare copper, Construction: Polycarbonate connector
- Meets Cat5e TIA/EIA and Meets RoHS Compliant standards or certifications
- Suitable with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Features unshielded twisted pair technology for good LAN network connectivity
- Come in blue color
- Jacket material: PVC, Minimum average thickness: 0.6 mm, Outer diameter: 6.2 + 0.30 mm
- Conductor DC resistance: 9.38 ohm/100 m (maximum)
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m
- Propagation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Insulation: HDPE, Diameter: 0.98 + 0.05 mm
- Contacts have 50 micron gold plating and the hood is made of molded PVC for durability
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T, 4/16 Mbps Token Ring, 100 VG-AnyLAN, 100 Mbps TP-PMD; 55/155 Mbps ATM and voice applications
- Snagless design provides protection to the clips when plugging and unplugging
- Weight: 0.25 lbs.
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Data Transfer Rate (Gbps) Actual manufacturer name for the color of the product. | Blue |
| Data Transfer Rate (Mbps) | 13.12 |
| End 2 Connector Type | PVC |
| Device Type | Stranded Bare Copper |
| Cable Use The primary color of the product | Blue |
| Direct Attach Cable (DAC) | RJ45 |
| Connector Gender Does the product contain an ethernet port or connector | Yes |
