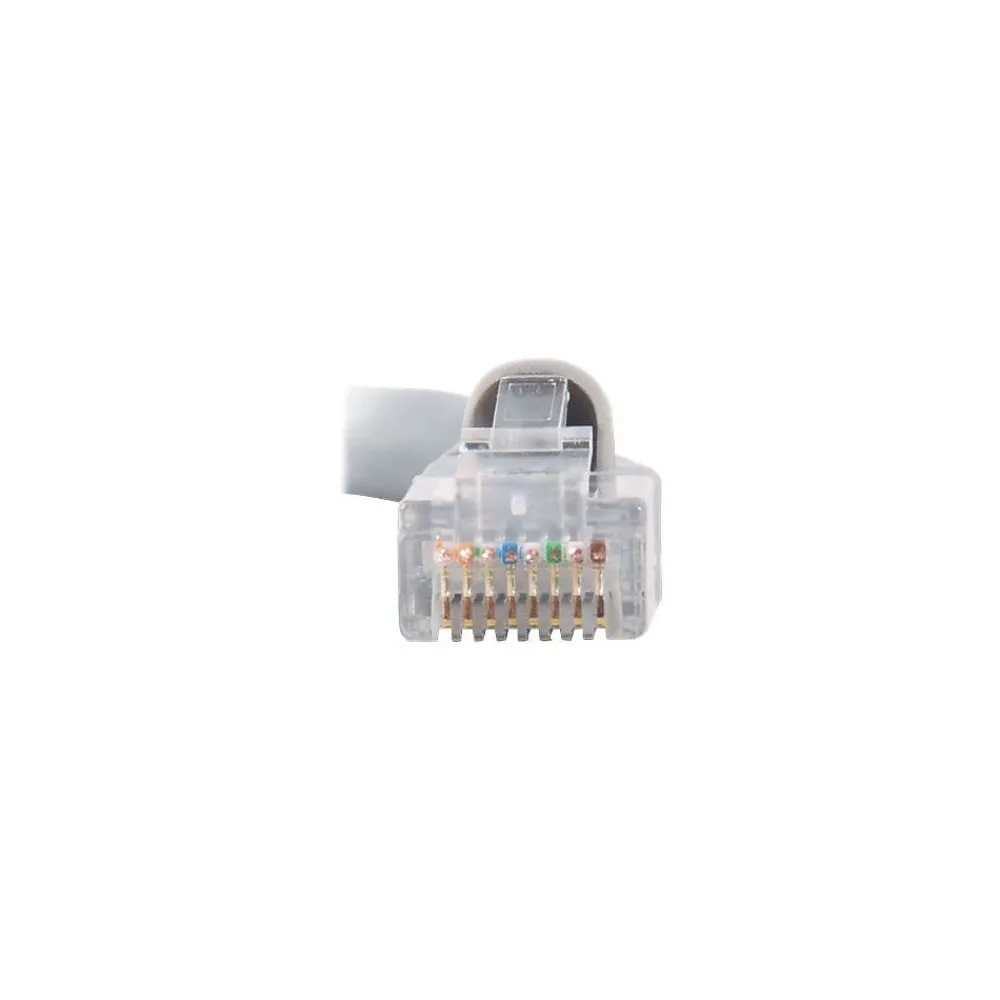

C2G Cables to Go C2G 15192 7′ RJ-45 Male/Male Cat5e Snagless Unshielded Ethernet Network Patch Cable, Gray
Original price was: $8.00.$5.99Current price is: $5.99.
Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications.
- Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications
- Cable length: 7′
- Connections: one 8-pin RJ-45 male connector on both ends
- Connectivity: Wired
- FR-PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, ANSI/TIA-568-C-2 standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in gray color
- Data transfer rate: 1000 Mbps
- Diameter: 5.3 mm OD jacket, 0.95 + 0.05 mm insulation, thickness: 0.55 mm jacket
- Voltage rating: 30 V, Dielectric strength: 500 MV/m
- Resistance: 89 ohm/km (maximum) DC conductor, 100 ohm/km (minimum) insulation
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-Any LAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice
- Weight: 0.17 lbs.
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Cable Use | 7 |
| Cable Length (Inches) Actual manufacturer name for the color of the product. | Gray |
| End 2 Connector Type | PVC |
| Device Type | Stranded Bare Copper |
| Data Transfer Rate (Mbps) Numerical Value of AWG rating of cable up to 40. | 24 |
| Connector Finish The primary color of the product | Gray/Silver |
| Data Transfer Rate (Gbps) | RJ45 |
| Connector Gender Does the product contain an ethernet port or connector | Yes |
